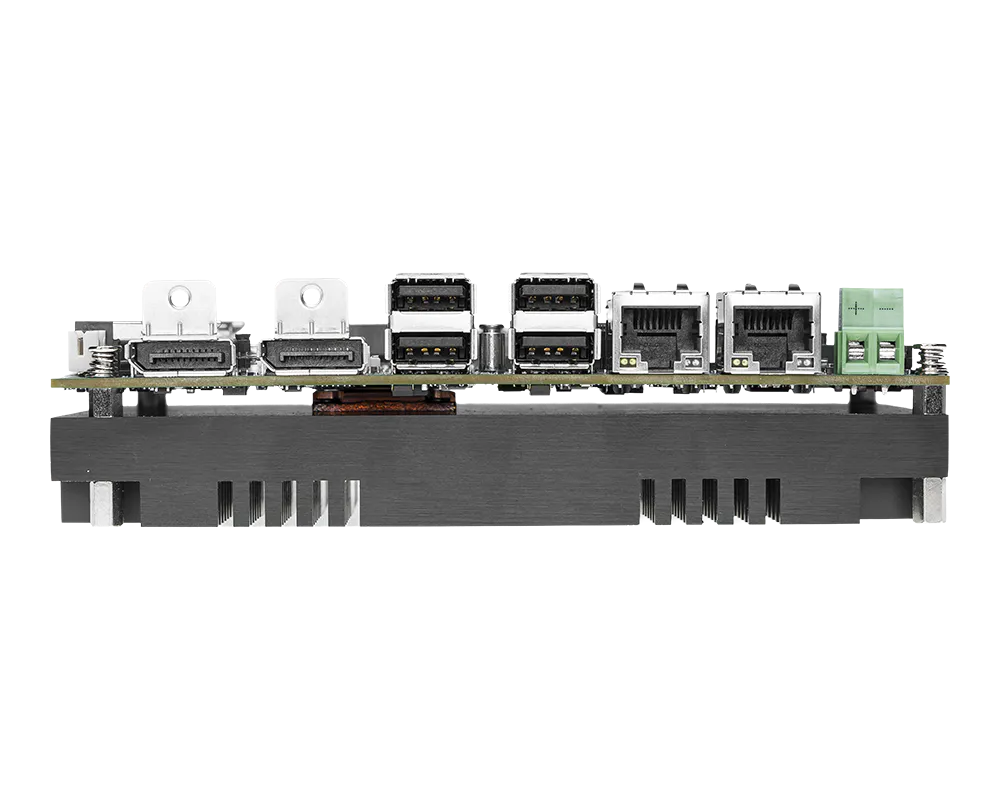

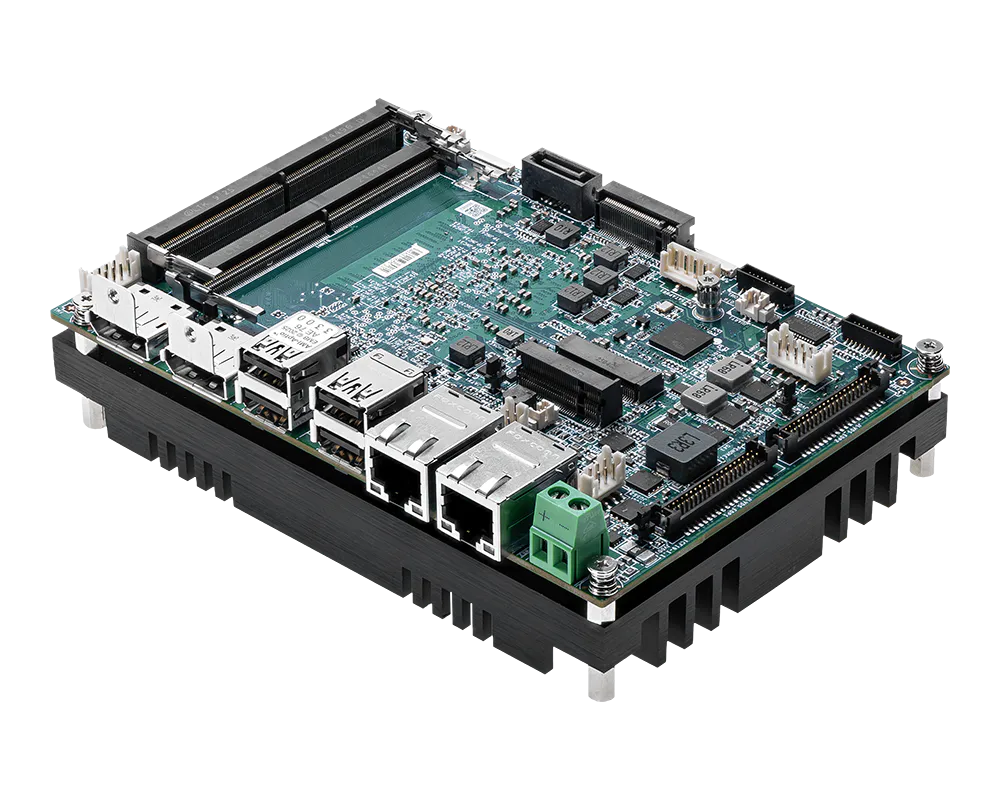

3.5" SBC with Intel® Meteor Lake-U/Arrow Lake-U for Fanless, Ultra Low-Power, High-Performance

3.5" SBC with Intel^® Meteor Lake-U/Arrow Lake-U for Fanless, Ultra Low-Power, High-Performance Solution

Intel^® Core Ultra Processors (Series 1) Meteor Lake- U / Core Ultra Processors (Series 2) Arrow Lake- U Series Processors
2 DDR5 5600 MHz SODIMM/6400 MHz CSODIMM Slots up to 96GB
Quadruple independent displays: 2 DP, 2 LVDS/eDP
1 GbE LAN, 1 2.5GbE Lan with RJ-45
1 M.2 B key, 1 M.2 E key
1 M.2 M key, 1 SATA 3.0 for storage
4 USB 3.2 Gen 2, 4 USB 2.0, 2 COM (2 RS-485), DIO, Audio, Amplifier-R/L 3W each
Onboard TPM 2.0
Wide Voltage DC-IN 12~24V (OCP & OVP)

Compatible with Embedded Box MS-C927

916-CF19-002
MS-CF19\606-CF19-010\806-CF19-007, INTEL METEOR LAKE Core Ultra 7- 165U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-004
MS-CF19\606-CF19-030\806-CF19-008, INTEL METEOR LAKE Core Ultra 7- 155U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-005
MS-CF19\606-CF19-040\806-CF19-009, INTEL METEOR LAKE Core Ultra 5- 135U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-003
MS-CF19\606-CF19-020\806-CF19-006, INTEL METEOR LAKE Core Ultra 5- 125U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-006
MS-CF19\606-CF19-050\806-CF19-010, INTEL ARROW LAKE Core Ultra 7- 265U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-007
MS-CF19\606-CF19-060\806-CF19-011, INTEL ARROW LAKE Core Ultra 7- 255U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-008
MS-CF19\606-CF19-070\806-CF19-012, INTEL ARROW LAKE Core Ultra 5- 235U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch

916-CF19-009
MS-CF19\606-CF19-080\806-CF19-013, INTEL ARROW LAKE Core Ultra 5- 225U, DDR5 SODIMM*2, DP*2, LVDS co-lay eDP*2, M.2 M key*1, M.2 E key*1, M.2 B key*1, 2.5GbE LAN*1, 1GbE LAN*1, SATA 3.0*1, USB 3.2*4, USB 2.0*4, COM*2, TPM2.0, 3.5 inch
